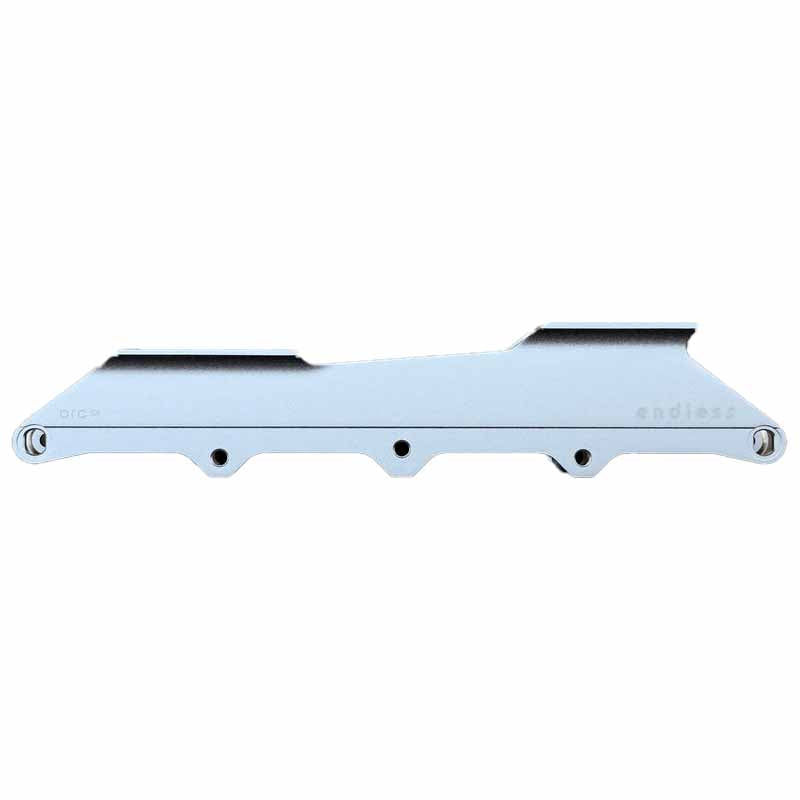

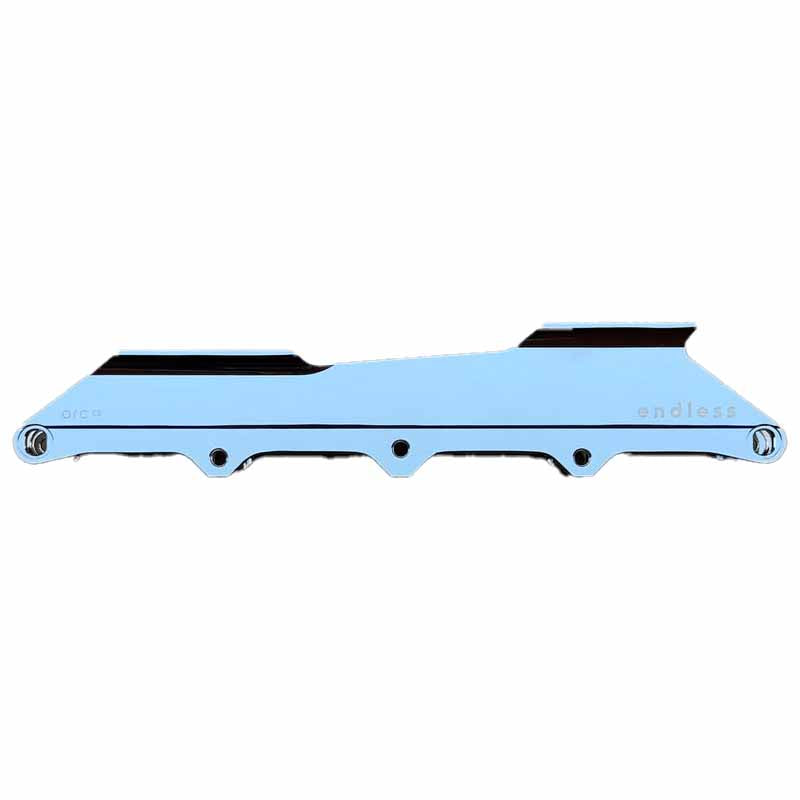

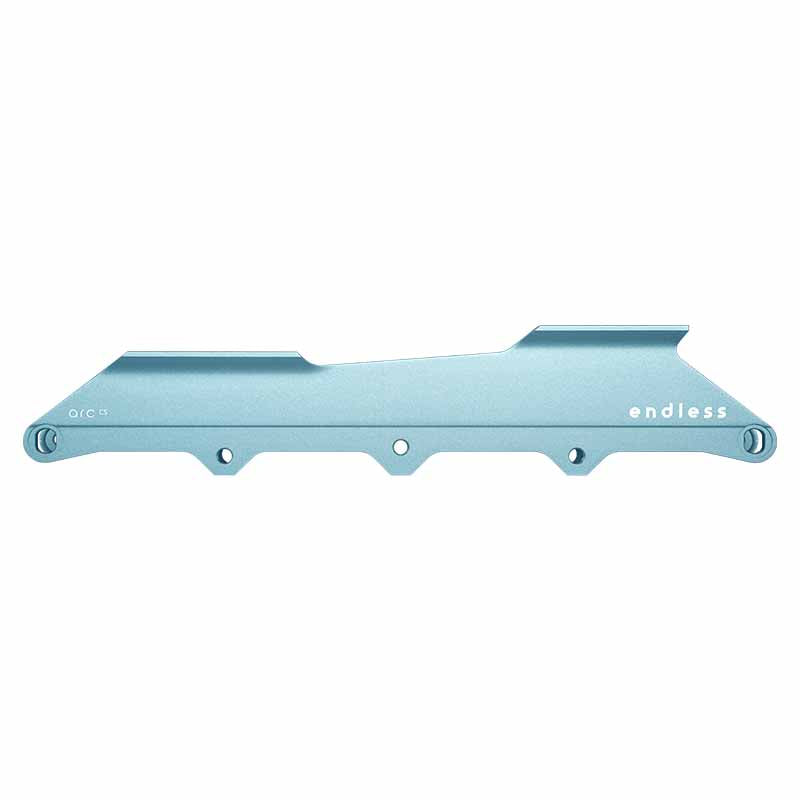

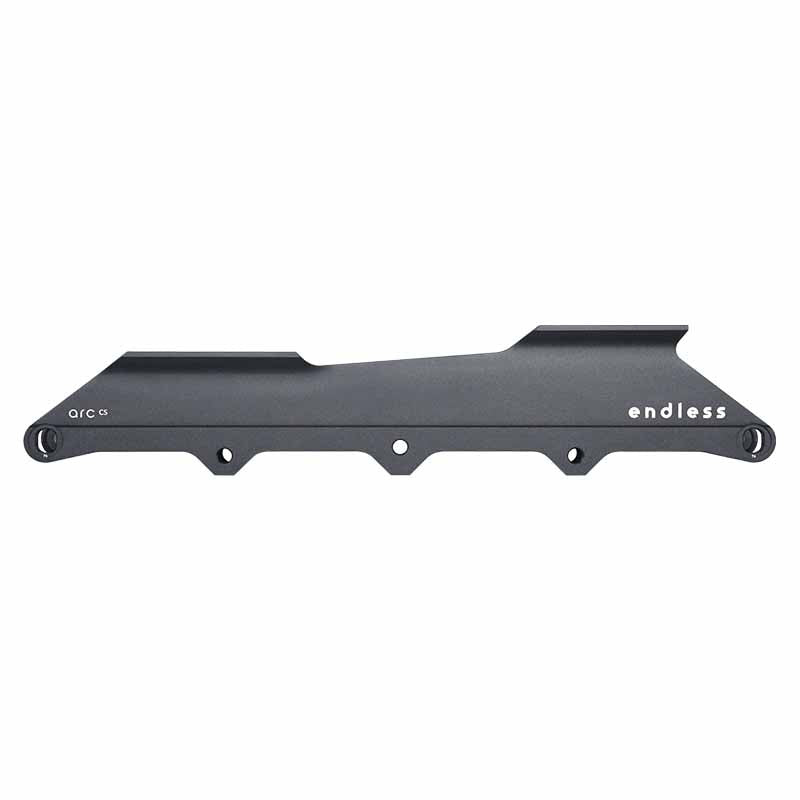

The Endless Arc CS 165 Frame is an adjustable rocker, 5-wheel Compact Scale frame specifically designed for "urban figure skating", and for smaller-footed wizard skaters seeking an appropriately Frame Lengthd experience. Through meticulous development and testing we have engineered a frame that we believe delivers an innovative level of 5-wheel performance for all 165 mount boots. An exceptionally rigid structural design and novel wheel configuration brings uncompromised levels of responsiveness, control, and acceleration that enhance the execution of moves and open up limitless skating expression...and most importantly, fun!
Wheel configuration: 3x 76 mm (wheels 1, 3, 5) + 2x 68 mm (wheels 2, 4)
- For the best experience do NOT mix round and bullet wheel profiles. Matched sets of Endless or Street Invader wheels can be purchased in our store.
Multi-position Arc Rocker
- Enhanced levels of rocker possible using optional Arc Deluxe Rocker Axles (silver), or black Rocker Axles in "up" setting
- Four (4) rocker positions of outer 76 mm wheels for performance tuning
- Urban figure skate setup: Silver Axle in front, Black Axle down in back
Optimized for game-changing responsiveness, speed, acceleration, and precise control of movement
- Higher performing alternative to 5x72 options
- Speed of 76 mm with ride height set by 68mm wheels
Recommended for Intermediate and Advanced skill levels
Recommended for urban figure skating with boot Frame Lengths 35-44
Recommended for wizard skating with boot Frame Lengths 35-38
- For Frame Length 39 and above wizard skating we recommend the longer Arc | Arc ES versions
Mounting: 150, 165, 180 mm
- Longitudinal mounting slots allow for optimized front-back alignment with all skate brands
- For centered mounting on FR/Seba boots and Micro MT Plus: push frame forward (bolt sits towards rear of slot)
- For centered mounting on Rollerblade or Adapt boots: push frame backwards (bolt sits towards middle of slot)
- Lateral mounting slot allow for angled adjustment on 7-hole mounts only, like FR1/2/3.
Wheelbase: 292 mm
Pivot spacing: 73 mm
Brake compatibility: not recommended for use with a brake
One frame set includes: 2 frames and axle hardware

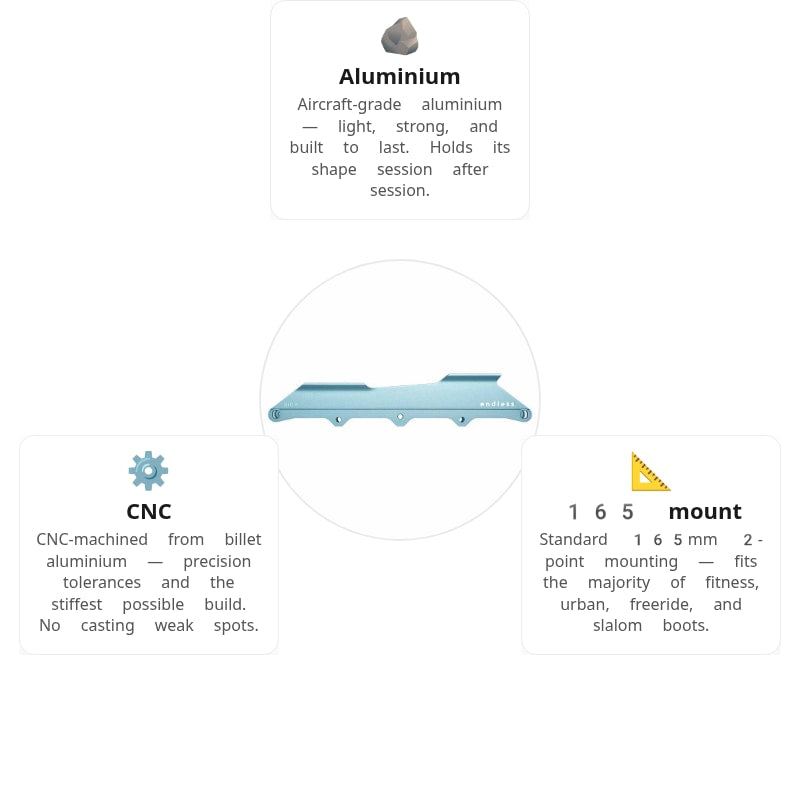

CNC-machined from 6061-T6 aluminum
Weight = 303 grams, without spacers and axles
